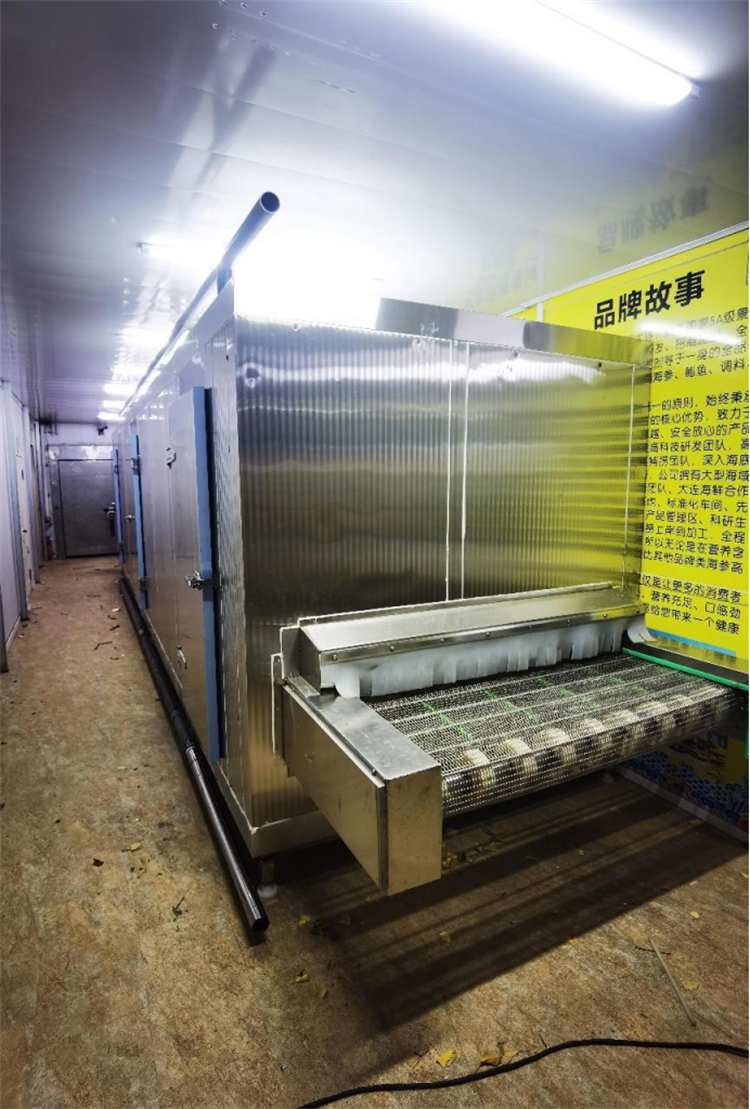

SSD-500 High Efficiency IQF Quick Freezing Tunnel Vegetable Fruit Fish Seafood Freezing Machine

Product Description

 1, the design and production of the whole equipment are implemented in accordance with HACCP requirements, to ensure food hygiene and safety, so that food processing enterprises can successfully pass HACCP certification and obtain food export permits.

2, the frame structure is made of stainless steel SUS304, all for argon arc welding.

3, the evaporator is aluminum tube aluminum sheet, using a large distance structure, so that the defrosting interval is long. The use of large fin, so that the frost cleaning is very convenient, in line with food hygiene conditions. Large area aluminum alloy finned bushing expansion process, high heat transfer efficiency. Evaporation tube thick-walled tube, through 24kg/cm2 pressure test.

4. Defrosting method; An external water valve is used to centrally control the water evenly flushing frost.

5, the library body is made of 304 stainless steel, the overall beautiful and generous. The thickness of the storage board is 120mm, the bulk weight is 40kg/mš³, and the four corners are made of special corner plates, one molding, good thermal insulation performance, and the buffer room is set at the inlet and outlet to effectively reduce power consumption.

6, the bottom of the library board has a certain inclination, and is equipped with a drainage hole, easy to clean, to ensure that there is no sanitary dead Angle inside the equipment.

7. The whole library is equipped with a maintenance door, which is convenient for cleaning and maintenance in the library. The maintenance door is equipped with a live heating device, which can ensure flexible opening. There are maintenance and cleaning channels in the warehouse, which is easy to enter the warehouse for washing and maintenance.

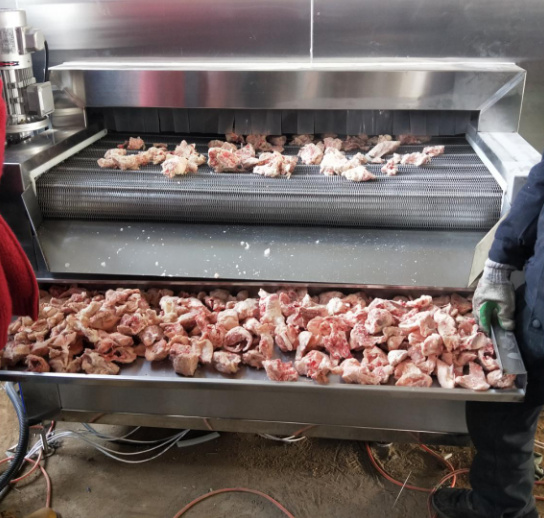

8, the use of mesh belt chain transmission mechanism, low mechanical failure rate, the use of high-strength chain, sprocket, to avoid the deformation of the chain, breaking phenomenon, mesh wire is braided by high-strength stainless steel wire, to ensure the service life.

9, the network belt runs through a set of cycloidal pinwheel reducer, using a well-known brand inverter (standard for Mitsubishi or Orrey, can be specified by the customer), to achieve stepless speed regulation, by changing the speed of the network belt to adjust the freezing processing capacity.

10, according to the type of incoming products set mesh belt type, mesh size and mesh buckle shape, to ensure smooth passage of goods and small ventilation resistance.

11, with air deflector, and the use of high efficiency and low noise axial flow fan, through effective air flow organization, improve the freezing efficiency.

12, the height of the grid wind guide device is adjustable, for different thickness of frozen products, adjust the corresponding channel height. The technology is used in the fluidized bed single freezing technology to shorten the distance between the tuyere and the frozen product, to improve the wind pressure and wind speed blowing across the surface of the frozen product, and to increase the freezing speed.

13, electric control box: stainless steel shell, brand-name electrical components, with library temperature display, network speed adjustment, emergency stop device.

Outer :14000*3200*2300mm

Inner: 12500*3200*2300mm

Conveyor Width:1800mm

Voltage:380V/3Phase

Capacity:500kg/h

Working Temperature:-35„±3„

Input Material Temperature：<20„

Output Material Temperature：-18„±3„
